Task Drawing & Worksheet

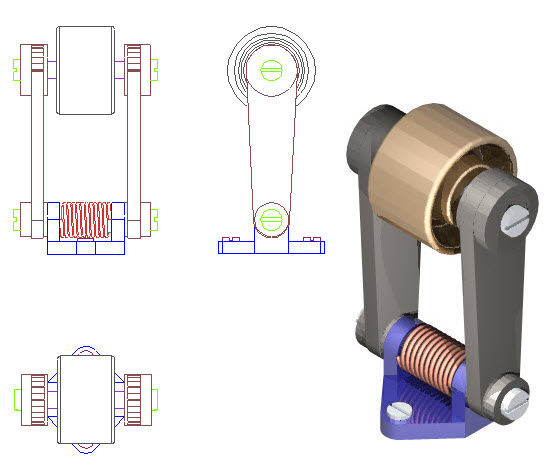

resources Download this drawing(A copy of the finished drawing is stored in the Blocks palette)

Activity Overview

During this session you will learn how to :

• Assemble all the parts into a single design.
• Use Parts stored in the Blocks palette.
• The Design Director will be used to manage the display of layers.
• A new part will be created in context

Introducing

The following tools will be used during this Session :

• Vector Copy
• Double Point Circle with 3D Thickness

Information

• Use your design which was saved from the previous Session or use the sample drawing for this session.
• This design is part of an assembly. Save each stage of the design.
• The Form Building Edges option is activated at various intervals for visual and construction purposes. Use Options | Drawing Styles | Display | Draw Form Building Edges to activate/deactivate this option.
• This Session uses the Ribbon menu and Workspace.

Estimated Duration

• Approximately 50 minutes drawing time. Total session duration may vary.

FULL SESSION VIDEO

A video is provided for each individual Task of this Session, however a full session video is provided below.
