Final Preparation

Prepare the model for final presentation as follows :

Clear the construction from the model using Edit > Clear Construction.  The 2D profiles can be deleted or saved in the Blocks palette.

Make sure all the appropriate material properties have been applied to both the seat, the pedestal and the context decor.

Create at least 3 viewports; one representing the Top or Front view, the other representing an Isometric view.

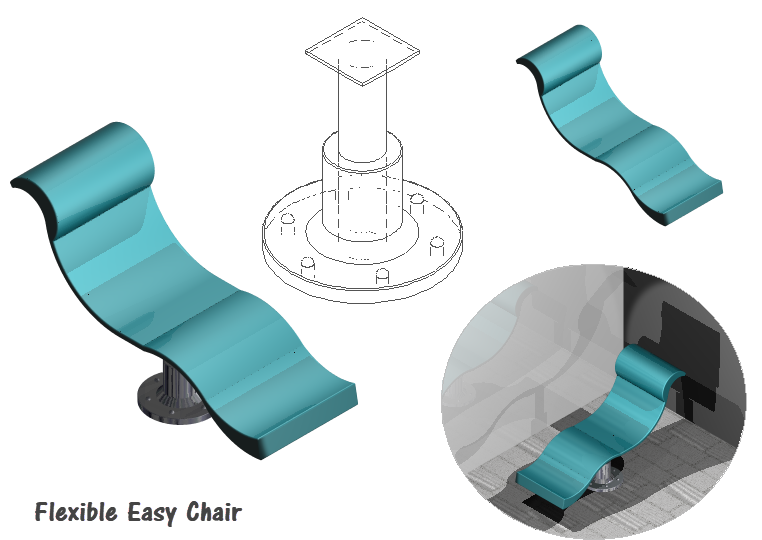

Create a paper space layout on a landscape sheet and insert the viewports, shown below. The Isometric viewport should be rendered.

Remove the viewport borders using Viewport > Visible Box.

Insert appropriate text labeling.





Save Design

Save this design in the project folder with a file name corresponding to the current Session number.
