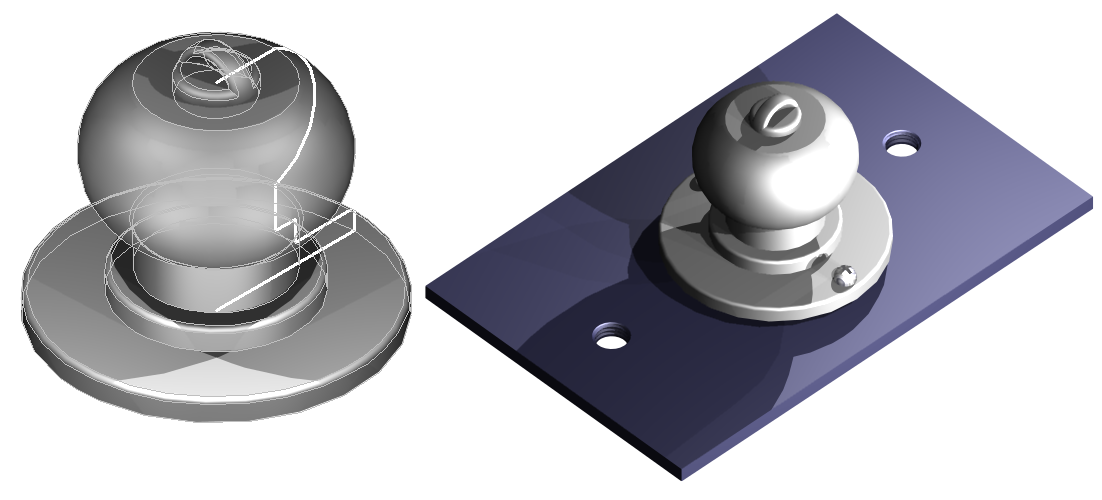

Task Drawing & Worksheet

resources Download this drawing(A copy of the finished drawing is stored in the Blocks palette)

Activity Overview

During this session you will learn about :

Revolving a profile about an axis to produce a solid object.

Using smaller solid objects as subtracting units to remove volume from a primary solid.

Duplicating objects in a rectangular pattern.

Using the Thread tool to create an interior thread.

Introducing

The following tools will be used during this Session :

Revolve.

Workplane Intersection.

3D Array.

The Thread tool.

Adjusting the Faceter Mode.

Information

Profiles drawn at the beginning of this session may differ, therefore, resulting solids may be of slightly different shapes

When assembling objects with multiple surface lines, such as cylindrical objects, the Faceter Mode is adjusted so that edges are more clearly defined.

Estimated Duration

Approximately 45 minutes drawing time. Total session duration may vary.

FULL SESSION VIDEO

A video is provided for each individual Task of this Session, however a full session video is provided below.

This movie will open in a new window. To navigate back to this page, close the movie window.
