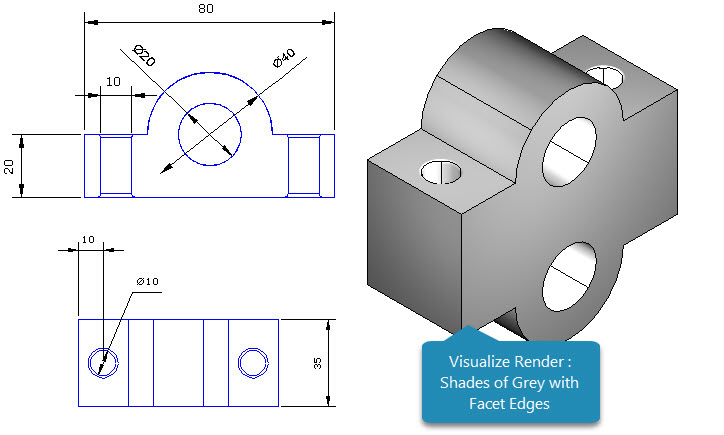

Task Drawing & Worksheet

resources Download this drawing(A copy of the finished sketch and model is stored in the Blocks palette)

Activity Overview

Using 2D boolean functions to add profiles together to create one region.

Using 2D boolean functions to create a profile with an extracted region.

Object handling and rotation.

Moving between the 2D/3D selector mode.

Using  3D boolean function to combine or separate the volumes of 2 solids.

Introducing

2D Add

2D Subtract

3D Add

3D Subtract

3D Selection Properties

Toggle 2D/3D

 Information

The simple extrude used in this exercise ensures that the original 2D profile is retained.

If the layer 0 is switched off, the outline of the selected facet is not displayed when using Workplane by Facet.

Estimated Duration

Approximately 20 minutes drawing time. Total session duration may vary.

FULL SESSION VIDEO

A video is provided for each individual Task of this Session, however a full session video is provided below.

This movie will open in a new window. To navigate back to this page, close the movie window.
