Rendered Viewport

In this Task

A viewport will be rendered to illustrate the finished model.

Before you Start

Basic material properties must be applied to the finished model.

An Isometric viewport must be inserted into the paper space layout.

Take Note

There is no animation assistance for this task as the instructions are minimal.



Rendered viewport

A viewport can be rendered to illustrate the photo-realistic finished model.

Material properties must be applied prior to rendering otherwise a default material finish will be used.

A viewport of the finished model must be inserted into the paper space layout, preferably using an isometric view.

Select the viewport border of the finished model in isometric view, then right click and select Properties from the local menu.

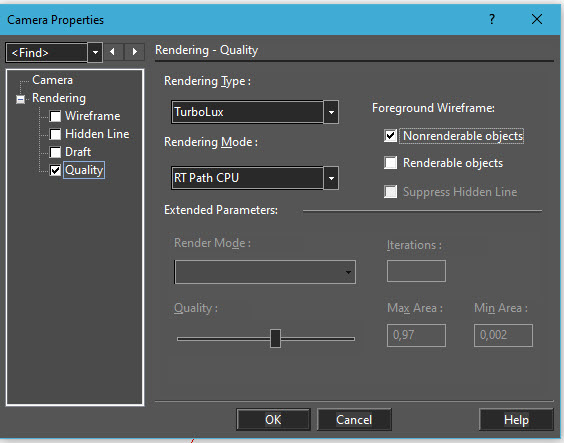

Select the Quality Render option from the Rendering page, shown below.  The result is shown below.

Rendered viewport
