Meet 2 Lines

In this Task

• Segments of the drawing will be ‘trimmed’ using the Meet 2 Lines tool.

Before you Start

• If a line segment is removed in error, use the Undo tool or right click to obtain the local menu and select Undo Meet 2 Lines.

Take Note

• The action of trimming lines using the Meet 2 Lines is done strictly in pairs, usually across a diagonal corner. Refer to the sketch below.

Meet 2 Lines

Ribbon : Modify | 2D Modifications | Meet 2 Lines

Default Menu : Modify | Meet 2 Lines

Palette : Modify | Modify | Meet 2 Lines

The Meet 2 Lines tool creates ‘corners’ of intersecting or potentially intersecting lines.The planar geometry of the lines is not compromised when using the Meet 2 Lines tool.The Meet 2 Lines tool can also be used to join the end vertices of Bezier Curves.

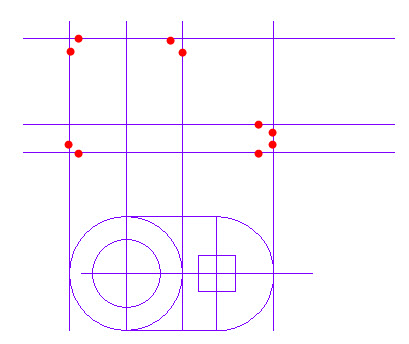

Using the diagonal pairs shown in the illustration below, select the points on the lines. If a line is reduced in error, use the Undo tool shown below to return the modified line to its original status.

Use the Undo tool if the line is reduced in error

The result is shown below.
