Task Drawing and Worksheet

RESOURCES Download and save the sample drawing to your local drive.(Samples of the sketch & model are available in the Blocks palette)

Activity Overview

During this session you will learn about :

• Creating a Block of a sketch.
• Using Isometric Views and Workplanes.
• Using the Join Polyline tool to create a profile.
• Extruding a profile.
• Moving objects onto the Workplane.
• Using Boolean Facet tools such as 3D Add and 3D Subtract.
• Applying material properties to a 3D object.
• Creating a drawing layout.

Introducing

The following tools will be used during this Session :

• Creating a Block.
• Using the Select by Layer tool.
• Join Polyline.
• Simple Extrude.
• Workplanes.
• Isometric Views.
• Boolean Facet tools.

Information

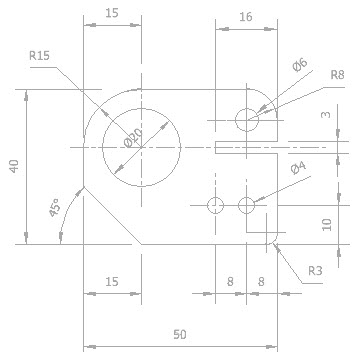

• The 2D sketch of this model was produced in Session 1. If you have not completed this drawing you can download it here.
• This Session uses the TurboCAD Ribbon workspace and menu options.

Estimated Duration

• Approximately 50 minutes drawing time. Total session duration may vary.

Task Videos

• A video is provided for each individual Task of this Session, however a full session video is provided below.
