Task Drawing and Worksheet

RESOURCES Download and save this drawing to a folder on your local drive.(A sample of the FloorPlan underlay and the finished FloorPlan is available in the Blocks Palette)

Activity Overview

During this session you will learn about :

• The subject of conceptual sketching will be discussed and demonstrated.

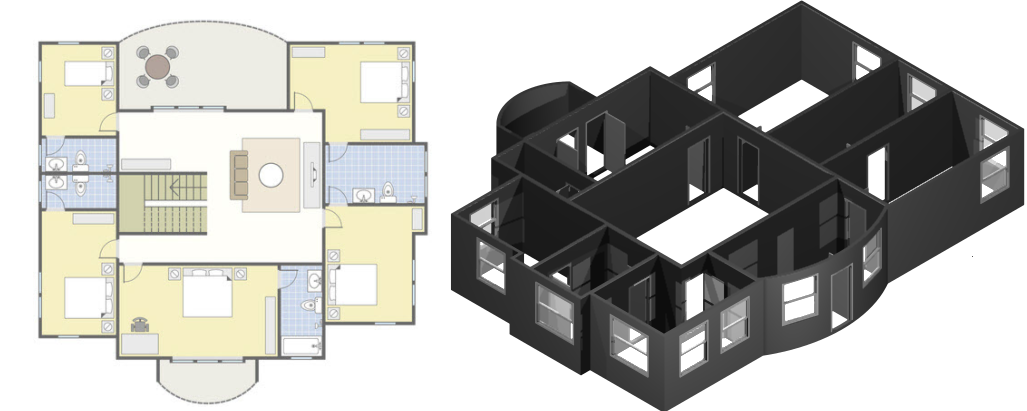

• An image will be inserted and used as an underlay over which a floor plan will be sketched.
• The Wall, Arc Wall, Door and Window tool will be used.
• Walls, doors and windows will be modified.
• Standard (Front, Top, Side) and Isometric views.

Introducing

The following tools will be used during this Session :

• The Wall/Arc Wall tool tool.
• The Doors and Windows tool.
• Working with Door and Window Styles.
• Inserting an image into the workspace.

Information

• Conceptual sketching, also referred to as ‘tracing’ is a convenient method of rapidly capturing important aspects of a design.
• This Session uses the TurboCAD Ribbon workspace and menu options.

Estimated Duration

• Approximately 60 minutes drawing time. Total session duration may vary

Task Videos

• A video is provided for each individual Task of this Session, however a full session video is provided below.
